Lima Locomotive Works, Inc.

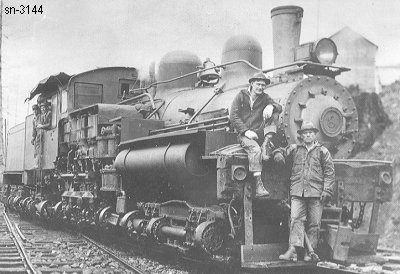

Photo Credit:
by Clark Kensey
Shop Number 3144 - Built for: The Booth Kelly Lbr. Co.
{2,563rd Lima Built Shay}
Built:
11-22-1920
Class:
C
80-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 13.5 x 15
Gear Ratio:
2.05
Wheel Dia.:
36"
Gauge:
std
Boiler:
[Style - Dia.]

E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
36,026 Lbs.
Factor of
Adhesion:

5.63
Maximum
Safe Speed:

20.9
Fuel Type:
Oil
Fuel Capacity:
2,000 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
164,900
Owners:
The Booth Kelly Lbr. Co. #7, Wendling, OR
Day Lbr. Co. #7, Big Lake, WA
(4-21-1926) For sale
(2-25-1927) Flora Log. Co., Carlton & Coast RR #8, Tillamook Gate (Carlton), OR
Flora Log. Co., Carlton & Coast RR #8, Neverstill (Carlton), OR
(1939) Abandoned at Neverstill with other equipment after fire
(1942) Recovered moved to Carlton
(4-7-1943) Dulien Steel Products (D), Portland, OR
(4-7-1943) For sale
Disposition: Scrapped
Additional Notes: Carlton & Coast RR ran from Carlton to Tillamook Gate
