Lima Locomotive Works, Inc.

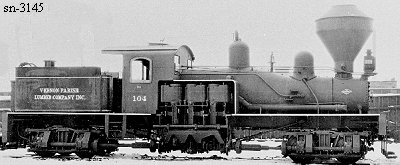

Photo Credit:
George R. Kadelak collection (BP 11-1920)
Shop Number 3145 - Built for: Vernon Parish Lbr. Co.
{2,564th Lima Built Shay}
Built:
11-17-1920
Class:
B
60-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std
Boiler:
[Style - Dia.]

E.W.T. - 46.375"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
23,868 Lbs.
Factor of
Adhesion:

5.15
Maximum
Safe Speed:

19.4
Fuel Type:
Wood
Fuel Capacity:
2 Cords
Water Capacity:
2,000 Gallons
Empty Weight:
As built
102,300
Owners:
Woodward, Wight & Co. (D), New Orleans, LA
Vernon Parish Lbr. Co. #105, Kurthwood, LA
(3-3-1930) Roy O. Martin Lbr. Co., Moreauville, LA
Disposition: Scrapped
Additional Notes:
