Lima Locomotive Works, Inc.

Photo Credit:
George Kadelak collection (BP 9-1920)

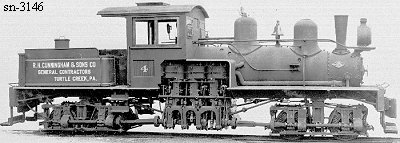

Shop Number 3146 - Built for: R. H. Cunningham & Sons Co.
{2,565th Lima Built Shay}
Built:
9-2-1920
Class:
B
24-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 8
Gear Ratio:
3.071
Wheel Dia.:
29"
Gauge:
36"
Boiler:
[Style - Dia.]

E.W.T. - 33.5"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
9,759 Lbs.
Factor of
Adhesion:

5.89
Maximum
Safe Speed:

11.2
Fuel Type:
Coal
Fuel Capacity:
1.25 Tons
Water Capacity:
830 Gallons
Empty Weight:
As built
47,500
Owners:
R. H. Cunningham & Sons Co. #4, Turtle Creek, PA
(10-1-1925) For sale
(3-1926) Birmingham Rail & Loco. Co. (D) #1611, Birmingham, AL
(12-1926) Big Springs Lbr. Co. #2, Kirven, AL
(c10-1929) For sale
Disposition: Scrapped
Additional Notes:
