Lima Locomotive Works, Inc.

Photo Credit:
George R. Kadelak collection (BP 11-1920)

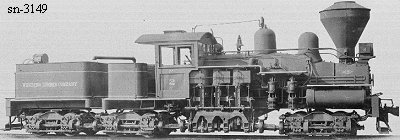

Shop Number 3149 - Built for: Western Lbr. Co.
{2,568th Lima Built Shay}
Built:
11-27-1920
Class:
C
60-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.529
Wheel Dia.:
32"
Gauge:
std
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
25,820 Lbs.
 Factor of
Adhesion:
5.17
 Maximum
Safe Speed:
15.1
Fuel Type:
Coal
Fuel Capacity:
3.5 Tons
Water Capacity:
2,000 Gallons
Empty Weight:
As built
110,800
Owners:
(11-27-1920) Western Lbr. Co. #2, Milltown, MT
(11-27-1920) Leased to: Heron Lbr. Co. #2, Arlee, MT
(8-28-1928) Anaconda Copper Mining Co., Lbr. Dept., 2 (2nd), Bonner, MT
(8-28-1928) Leased to: Heron Lbr. Co. #2, Arlee, MT
(4-1930) Anaconda Copper Mining Co., Lbr. Dept., #6, Bonner, MT
Disposition: (1947) Scrapped at Bonner, MT
Additional Notes: Heron Lbr. Co. was the logging contractor for Western Lbr. Co. & later Anaconda Copper Mining Co. until 1930 when Shay was returned to Anaconda Copper Mining Co.and renumbered to #6.
