Lima Locomotive Works, Inc.

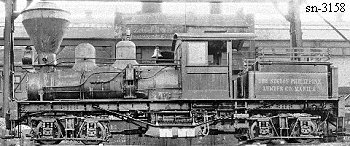

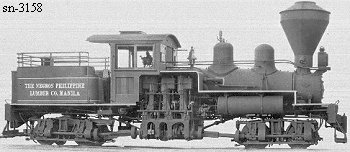

Photo Credit:
Both: George R. Kadelak collection (BP 12-1920)
Shop Number 3158 - Built for: The Negros Philippine Lbr. Co.
{3,177th Lima Built Shay}
Built:
12-30-1920
Class:
B
32-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 12
Gear Ratio:
3.071
Wheel Dia.:
29"
Gauge:
42"
Boiler:
[Style - Dia.]

E.W.T. - 37.25"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
14,639 Lbs.
Factor of
Adhesion:

4.34
Maximum
Safe Speed:

11.2
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,000 Gallons
Empty Weight:
As built
52,000
Owners: (Includes new data after 2018 Shay book completed)
Christensen-Hanify & Weatherwax (D), Manila, Luzon, U. S. Territory of the Philippines
The Negros Philippine Lbr. Co. no # later #3, Iloilo, Negros Occidental, U. S. Territory of the Philippines
(7-6-1939) Philippine Red Lbr. Co. #3, Claveria Cagayan, Luzon, U. S. Territory of the Philippines
Disposition: Scrapped
Additional Notes:
