Lima Locomotive Works, Inc.

(BP 3-1921)
Photo Credit:
Both: George R. Kadelak collection

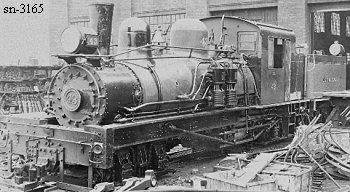

Shop Number 3165 - Built for: Oahu RY & Land Co.
{2,583rd Lima Built Shay}
Built:
3-23-1921
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
36"
 Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
5.18
 Maximum
Safe Speed:
19.0
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
130,000
Owners:
Oahu RY & Land Co. #43, Honolulu, Oahu, Territory of Hawaii
(by1940) Stored out of service at Waipahu, Oahu, Territory of Hawaii
Disposition: (1948) Scrapped
Additional Notes: (2-26-1926) Only used a few months each year hauling pineapple trains up a 3% grade.
The Territory of Hawaii was a U. S. Territory; Shay scrapped before statehood occurred.
