Lima Locomotive Works, Inc.
Photo Credit:

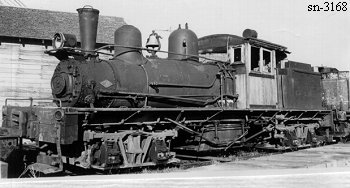

Left: Clevis & Debbie Jones collection

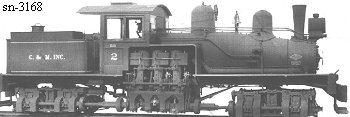

Right: George R. Kadelak collection (BP 10-1921)
Shop Number 3168 - Built for: Cobbs & Mitchell, Inc.
{2,586th Lima Built Shay}
Built:
10-19-1921
Class:
B
36-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
29"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 39.375"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
14,315 Lbs.
 Factor of
Adhesion:
5.70
 Maximum
Safe Speed:
16.8
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,200 Gallons
Empty Weight:
As built
66,800
Owners:
Cobbs & Mitchell #2, Cadillac, MI
(4-5-1926) Cobbs & Mitchell Co.#2, Valsetz, OR
Disposition: Scrapped
Additional Notes:
