Lima Locomotive Works, Inc.

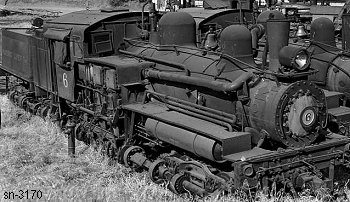

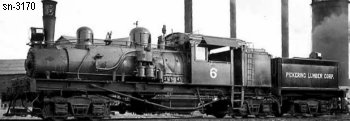

Photo Credit:
Left: Marc Reusser collection
Right: Martin E. Hansen collection
Shop Number 3170 - Built for: Hetch Hetchy RR
{2,588th Lima Built Shay}
Built:
11-26-1921
Class:
C
80-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 13.5 x 15
Gear Ratio:
2.05
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
35,026 Lbs.
 Factor of
Adhesion:
5.73
 Maximum
Safe Speed:
2039
Fuel Type:
Oil
Fuel Capacity:
1,800 Gals.
Water Capacity:
3,500 Gallons
Empty Weight:
As built
167,200
Owners:
Hetch Hetchy RR #6, Groveland, CA
(1926) Pickering Lbr. Co. #6, Standard, CA
(1937) Pickering Lbr. Corp. #6, Standard, CA
(1958) Retired from service
(1960) El Portal Transportation Museum, El Portal, CA
Disposition: on display @ El Portal Transportation Museum, El Portal, CA
Additional Notes:
SLc Survivor List
