Lima Locomotive Works, Inc.
Photo Credit:

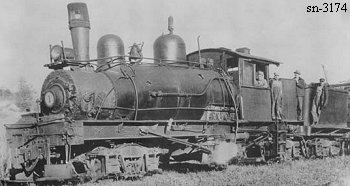

Left: David Thomas collection

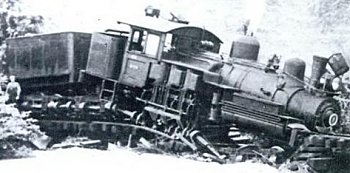

Right: by Herbert Gibson (8-30-1941)
Shop Number 3174 - Built for: Lima Locomotive Works, Inc. (built for stock)
{2,592nd Lima Built Shay}
Built:
11-4-1922
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
5.43
Maximum
Safe Speed:
19.0
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
133,000
Owners:
Lima Locomotive Works, Inc., Lima, OH; built for stock
Blackwood Lbr. Co., Tuckaseegee & South Eastern RY Co. #1 (1st) later 3174, East LaPorte, NC
Disposition: (c1946) Scrapped at Sylva, NC - boiler used in laundry at Waynesville, NC
Additional Notes:
