Lima Locomotive Works, Inc.

Photo Credit:
George R. Kadelak collection (B) 4-1922)

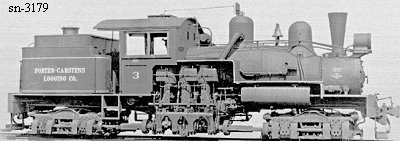

Shop Number 3179 - Built for: Porter-Carstens Log. Co.
{2,597th Lima Built Shay}
Built:
4-18-1922
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
16,886 Lbs.
Factor of
Adhesion:

6.05
Maximum
Safe Speed:

17.1
Fuel Type:
Oil
Fuel Capacity:
800 Gals.
Water Capacity:
1,560 Gallons
Empty Weight:
As built
86,000
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Porter-Carstens Log. Co. #3, Kerry, OR
(7-23-1924) George H. Chaney Log. Co. #3, Coquille, OR
Disposition: (by 1941) Scrapped
Additional Notes: (8-1941) boiler only, for stationary service Drew Lbr. Co., Drew, OR
