Lima Locomotive Works, Inc.

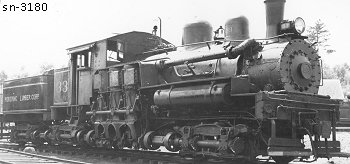

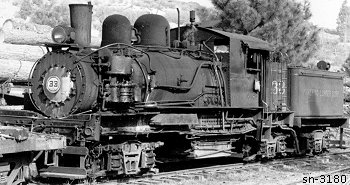

Photo Credit:
Left: Jack Holst collection
Right: John Henderson collection
Shop Number 3180 - Built for: Hammond Lbr. Co.
{2,598th Lima Built Shay}
Built:
6-30-1922
Class:
C
90-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 14.5 x 15
Gear Ratio:
2.05
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 58"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
40,407 Lbs.
 Factor of
Adhesion:
5.02
 Maximum
Safe Speed:
20.9
Fuel Type:
Oil
Fuel Capacity:
1,500 Gals.
Water Capacity:
3,500 Gallons
Empty Weight:
As built
169,000
Owners:
Hammond Lbr. Co. #33, Crannell, CA
(1931) Hammond & Little River Redwood Co. #33, Crannell, CA
(1936) Hammond Redwood Co. #33, Samoa, CA
Hammond Lbr. Co. #33, Samoa, CA
(3-17-1944) Pickering Lbr. Corp. #33, Standard, CA
(1966) Re-lettered Sugar Pine RY #33
(1981) Northern Counties Log. Interpretive Association, Eureka, CA, stored at Glendale CA
(5-17-2004) Timber Heritage Association #33, Eureka, CA, stored at Glendale CA
Disposition: (4-2009) Stored ex Hammond Lbr. Co. roundhouse, Samoa, CA
Additional Notes:
SLc Survivor List
