Lima Locomotive Works, Inc.
Photo Credit:

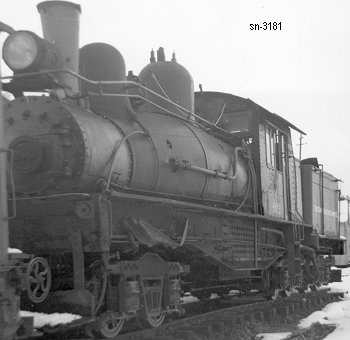

Left: by Jack Holst

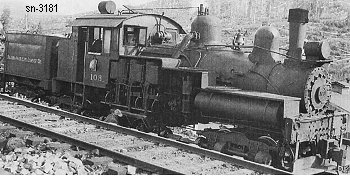

Richt: by Albert Farrow
Shop Number 3181 - Built for: Oregon-American Lumber Co.
{2,599th Lima Built Shay}
Built:
6-21-1922
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
5.51
 Maximum
Safe Speed:
19.0
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
140,000
Owners:
Oregon-American Lbr. Co. #103, Vernonia, OR
(1935) Oregon-American Lbr. Corp. #103, Vernonia, OR
(1953) Long-Bell Lbr. Co., #103, Vernonia, OR
(1956) International Paper Co., Long-Bell Division #103, Vernonia, OR
Disposition: (1957) Scrapped
Additional Notes:
