Lima Locomotive Works, Inc.

(BP 7-1922)

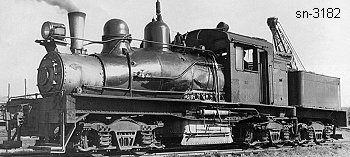

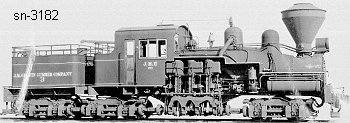

Photo Credit:
Both:George R. Kadelak collection
Shop Number 3182 - Built for: J. M. Griffin Lbr. Co.
{2,600th Lima Built Shay}
Built:
7-14-1922
Class:
C
60-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.529
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
25,820 Lbs.
 Factor of
Adhesion:
5.09
 Maximum
Safe Speed:
15.1
Fuel Type:
Wood
Fuel Capacity:
2 Cords
Water Capacity:
2,000 Gallons
Empty Weight:
As built
112,400
Owners:
J. M. Griffin Lbr. Co. #3 "JM II", Burnside, MS
(8-15-1923) Reynolds-West Lbr. Co. #3, Burnside, MS
Marietta Lbr. Co. #3, Burnside, MS
(1-1928) Marietta Lbr. Co., Marietta, MS
(2-22-1930) Pearl River Valley Lbr. Co. #10, Canton, MS
Denkmann Lbr. Co. #10, Canton, MS
(1-1946) King Lbr. Ind. #10, Canton, MS
Disposition: (1951) Scrapped
Additional Notes:
