Lima Locomotive Works, Inc.

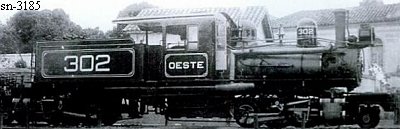

Photo Credit:
Marcelo Lordeiro collection (c1930-33)
Shop Number 3185 - Built for: Oeste De Minas RY
{2,603th Lima Built Shay}
Built:
8-15-1922
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
39.375"
[1 Meter]
 Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
4.98
 Maximum
Safe Speed:
19.0
Fuel Type:
Wood
Fuel Capacity:
2.5 Cords
Water Capacity:
2,300 Gallons
Empty Weight:
As built
128,300
Owners:
W. R. Grace & Co. (D), New York City, NY (exporter) For:
Oeste de Minas RY Co., Oeste de Minas RY #302, Barra Mansa, Brazil
Oeste de Minas RY Co., Oeste de Minas RY #3, Belo Horizonte, Brazil
Disposition: Scrapped
Additional Notes: (c1930) Converted to a 2-6-0 0-6-2 by Oeste De Minas RY [pictured above] however it was an experimental engine and never entering operational service.
