Lima Machine Works

Photo Credit:
Colorado Railroad Museum collection

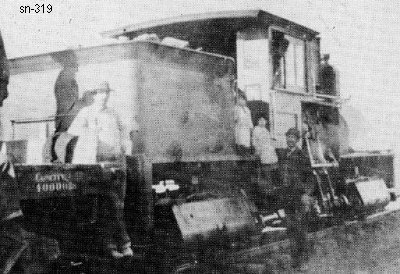

Shop Number 319	-	Built for: Stone Mountain RR & Quarry Co.
{283rd Lima Built Shay}

Built: 12-17-1890	Class: B 37-2	Trucks: 2	Cylinders: [#-Dia. x Stroke] 3 - 11 x 10
Gear Ratio: 2.050	Wheel Dia.: 29.5"	Gauge: std.	Boiler: [Style - Dia.] W.T. - 40"
Boiler Pressure: In Lbs. (PSI) 160	Tractive Effort: 15,135 Lbs.	Factor of Adhesion: 4.22	Maximum Safe Speed: 17.1
Fuel Type: Coal	Fuel Capacity: 1.5 Tons	Water Capacity: 1,038 Gallons	Empty Weight: As built 51,000
Owners: (Includes new data after 2018 Shay book completed) Stone Mountain RR & Quarry Co., Stone Mountain RR #1, Longmont, CO (1895) Noland Land & Transfer Co. #1, Lyons, CO (1914) Operation closed, Shay for sale (7-1914) Allen Coal Co. #1, Coalview, CO Pinnacle Coal Co. #1, Coalview, CO (10-1915) Routt-Pinnacle Coal Co. #1, Coalview, CO (8-1924) No longer in use
Disposition: (after 8-1926) Scrapped
Additional Notes: (10-1922) sn-319 left track and wrecked. Then being hit by sn-1531, which also left track at the same place when it came to assist.
