Lima Locomotive Works, Inc.

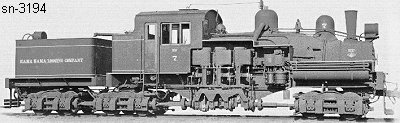

Photo Credit:
George R. Kadelak collection (BP 10-1922)
Shop Number 3194 - Built for: Hama Hama Log. Co.
{2,611th Lima Built Shay}
Built:
10-28-1922
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
30,375 Lbs.
Factor of
Adhesion:

5.60
Maximum
Safe Speed:

19.0
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
142,500
Owners:
Hama Hama Log. Co. #7, Eldon, WA
(12-22-1936) Columbia Construction Co. #7, Ilwaco, WA
Disposition: Scrapped
Additional Notes:
