Lima Locomotive Works, Inc.

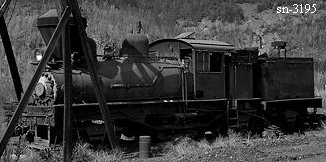

Photo Credit:
Both: by John C Hawkins (4-1960)
Shop Number 3195 - Built for: Scotch Lbr. Co.
{2,612th Lima Built Shay}
Built:
11-27-1922
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Diam.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
5.66
Maximum
Safe Speed:
19.0
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
140,000
Owners:
Scotch Lbr. Co., Alabama & Tombigbee RR #8, Fulton, AL
(1949) Twin Seam Mining Co. #8, Kellerman, AL
Disposition: (3-1963) Scrapped at Kellerman, AL
Additional Notes:
