Lima Locomotive Works, Inc.

Photo Credit:

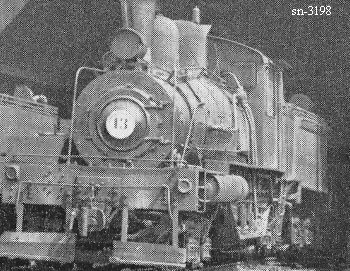

Left: by Albert Farrow (1952)

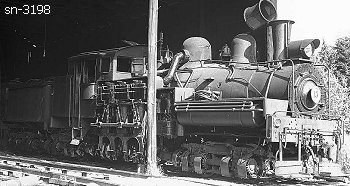

Top: Martin E. Hansen collection (5-23-1949)
Shop Number 3198 - Built for: English Lbr. Co.
{2,615th Lima Built Shay}
Built:
1-20-1923
Class:
C
90-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 14.5 x 15
Gear Ratio:
2.05
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 58"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
40,407 Lbs.
 Factor of
Adhesion:
5.06
Maximum
Safe Speed:
20.9
Fuel Type:
Oil
Fuel Capacity:
1,500 Gals.
Water Capacity:
3,500 Gallons
Empty Weight:
As built
170,200
Owners:
English Lbr. Co. #13, Conway, WA
(6-15-1945) Puget Sound Pulp & Tbr. Co.-English Unit #13, Conway, WA
Disposition: (9-1952) Scrapped at Conway, WA

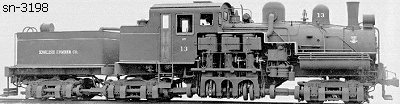

Additional Notes: Lima Builder Photo from George R. Kadelak collection
