Lima Locomotive Works, Inc.
Photo Credit:

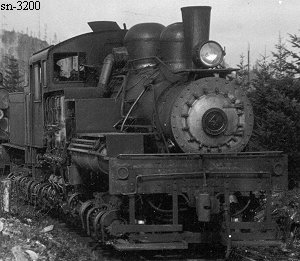

Front: Marc Reusser collection

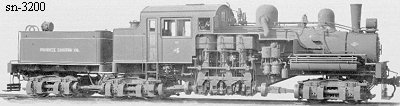

Right: George R. Kadelak collection (BP 2-1923)
Shop Number 3200 - Built for: Phoenix Log. Co.
{2,617th Lima Built Shay}
Built:
2-19-1923
Class:
C
80-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 13.5 x 15
Gear Ratio:
2.05
 Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
35,026 Lbs.
 Factor of
Adhesion:
5.56
 Maximum
Safe Speed:
20.9
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
165,700
Owners:
Phoenix Log. Co. #4 (2nd), Hoodsport, WA
(11-14-1939) Guy F. Atkinson Co. #1373, Enumclaw, WA
(4-3-1942) Atkinson, Kern & Kibbe #4, Reedsport, OR
Guy F. Atkinson Co. #4, Long Beach, CA
(8-9-1944) Guy F. Atkinson Co. #2803, Los Angeles, CA
(4-24-1947) Fickelstein Brothers (D), Los Angeles, CA, (for scrap)
Disposition: Scrapped
Additional Notes:
