Lima Locomotive Works, Inc.

Photo Credit:
by W. L. Newton

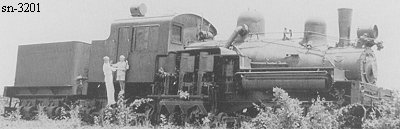

Shop Number 3201 - Built for: C. H. Grayson Lbr. Co
{2,618th Lima Built Shay}
Built:
2-10-1923
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
5.53
Maximum
Safe Speed:
19.0
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
136,000
Owners:
C. H. Grayson Lbr. Co. #3, Leeds, AL
(2-27-1923) Vida Lbr. Co. #3, Leeds, AL
(9-30-1927) For sale
Disposition: Scrapped
Additional Notes: Vida Lbr. Co. bought out the C. H. Grayson Lbr. Co. the day the new Shay arrived on 2-27-1923.
