Lima Locomotive Works, Inc.


Photo Credit:
All: George R. Kadelak collection (top row BP 3-1923)

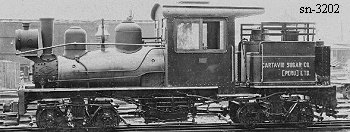

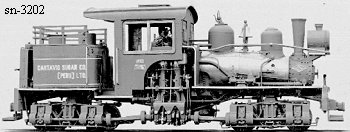

Shop Number 3202 - Built for: Cartavio Sugar Co. (Peru) Ltd.
{2,619th Lima Built Shay}
Built:
3-5-1923
Class:
A
13-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 6 x 10
Gear Ratio:
2.25
Wheel Dia.:
22"
Gauge:
36"
Boiler:
[Style - Dia.]

E.W.T. - 24.5"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
4,844 Lbs.
Factor of
Adhesion:

5.78
Maximum
Safe Speed:

10.6
Fuel Type:
Oil
Fuel Capacity:
125 Gals.
Water Capacity:
400 Gallons
Empty Weight:
As built
24,000
Owners:
W. R. Grace & Co. (D); For:
Cartavio Sugar Co. (Peru) Ltd. #3, Trujillo, Peru

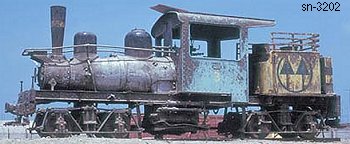

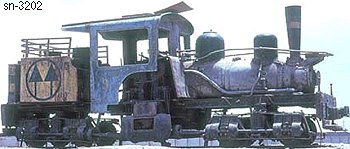

Disposition: Reported still in use May 1965, Possible Surviving
Additional Notes: Exported thru W. R. Grace & Co. (D)
