Lima Locomotive Works, Inc.

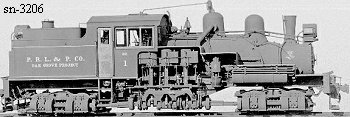

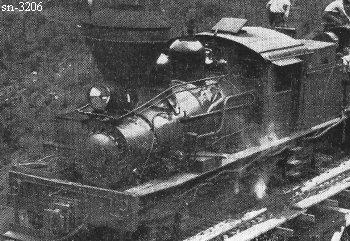

Photo Credit:
Left: Jack M. Holst collection (c1925)
Right: George R. Kadelak collection (BP 5-1923)
Shop Number 3206 - Built for: Portland RY Light & Power Co.
{2,623rd Lima Built Shay}
Built:
5-26-1923
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
22,563 Lbs.
 Factor of
Adhesion:
5.17
 Maximum
Safe Speed:
17.2
Fuel Type:
Oil
Fuel Capacity:
950 Gals.
Water Capacity:
1,750 Gallons
Empty Weight:
As built
97,800
Owners:
Portland RY, Light & Power Co. #1, Estacada, OR
(by 6-12-1923) Portland Electric Power Co. #1, Estacada, OR
Oregon Coast Log. Co., Cochran, OR
(4-8-1938) Standard Log. Co., Cochran, OR
(9-5-1945) Long-Bell Lbr. Co., Cochran, OR
Disposition: Scrapped
Additional Notes:
