Lima Locomotive Works, Inc.
Photo Credit:
Left: David Thomas collection
Right: Clevis & Debbie Jones collection

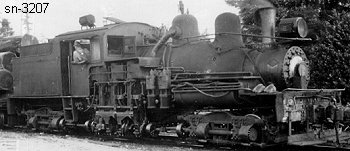

Shop Number 3207 - Built for: Portland RY Light & Power Co.
{2,624th Lima Built Shay}
Built:
5-26-1923
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
22,563 Lbs.
 Factor of
Adhesion:
5.17
 Maximum
Safe Speed:
17.2
Fuel Type:
Oil
Fuel Capacity:
950 Gals.
Water Capacity:
1,750 Gallons
Empty Weight:
As built
97,800
Owners:
Portland RY, Light & Power Co. #2, Estacada, OR
(by 6-12-1923) Portland Electric Power Co. #2, Estacada, OR
(by 7-10-1925) Bayside Redwood Co. #2, Carlotta, CA
(5-23-1929) Humboldt Redwood Co. #2, Carlotta, CA
Holmes-Eureka Lbr. Co. #2, Carlotta, CA
Disposition: Scrapped
Additional Notes:
