Lima Locomotive Works, Inc.

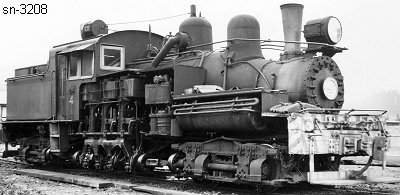

Photo Credit:
by C. W. Jernstrom (5-1948)
Shop Number 3208 - Built for: Manary Log. Co.
{2,625th Lima Built Shay}
Built:
4-10-1923
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
22,563 Lbs.
 Factor of
Adhesion:
5.40
Maximum
Safe Speed:
17.2
Fuel Type:
Oil
Fuel Capacity:
950 Gals.
Water Capacity:
1,750 Gallons
Empty Weight:
As built
103,100
Owners:
Manary Log. Co. #4, South Beach, OR
(2-27-1930) Pacific Spruce Corp. #4, Toledo, OR
(12-20-1935) C. D. Johnson Lbr. Corp. #4, Toledo, OR
Disposition: (5-1952) Scrapped
Additional Notes:
