Lima Locomotive Works, Inc.

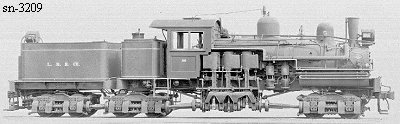

Photo Credit:
George R. Kadelak collection (BP 4-1923)
Shop Number 3209 - Built for: Little River Redwood Co.
{2,626th Lima Built Shay}
Built:
4-27-1923
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
5.48
 Maximum
Safe Speed:
19.0
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
139,150
Owners:
Little River Redwood Co. #5, Crannell, CA
(1931) Hammond & Little River Redwood Co. #5 (1st), Crannell, CA
(1936) Hammond Lbr. Co. #5, Samoa, CA
(late 1942) Leased to: Union Lbr. Co. #5, Fort Bragg CA
(spring 1943) Returned to: Hammond Lbr Co.
(3-25-1944) Leased to: Northern Redwood Lbr. Co. Arcata & Mad River RR, Korbel, CA
(1948) Breeden Iron Works (D), Eureka, CA for scrap
Disposition: (8-6-1948) Scrapped
Additional Notes:
