Lima Locomotive Works, Inc.

Photo Credit:

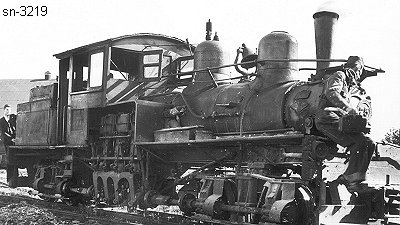

Left: by unknown (c1938) - Right: Marc Reusser collection (1938)
Shop Number 3219 - Built for: Kelley Island Lime & Transport Co.
{2,636th Lima Built Shay}
Built:
7-2-1923
Class:
B
24-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 8
Gear Ratio:
3.071
Wheel Dia.:
29"
Gauge:
36"
Boiler:
[Style - Dia.]
E.W.T. - 33.5"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
9,759 Lbs.
 Factor of
Adhesion:
6.05
Maximum
Safe Speed:
11.2
Fuel Type:
Coal
Fuel Capacity:
1.5 Tons
Water Capacity:
850 Gallons
Empty Weight:
As built
48,500
Owners:
Kelley Island Lime & Transport Co. #75, Marblehead, OH
(1930's) Stored out of service at Marblehead
Disposition: (1942) Scrapped for war effort
Additional Notes:
