Lima Locomotive Works, Inc.

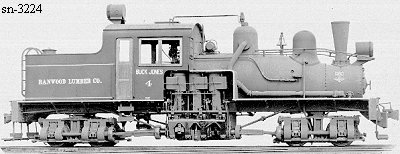

Photo Credit:
George R. Kadelak collection (BP 7-1923)
Shop Number 3224 - Built for: Ranwood Lbr. Co.
{2,641st Lima Built Shay}
Built:
7-28-1923
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
36"
Boiler:
[Style - Dia.]
E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16.886 Lbs.
 Factor of
Adhesion:
5.55
 Maximum
Safe Speed:
17.1
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,560 Gallons
Empty Weight:
As built
76,700
Owners:
Ranwood Lbr. Co. #4 "BUCK JONES", Pickens, WV
(1-1939) Pardee & Curtin Lbr. Co. #14, Bergoo, WV
Disposition: Scrapped at Bergoo, WV
Additional Notes:
