Lima Locomotive Works, Inc.

Photo Credit:
George Kadelak collection (BP 7-1923)

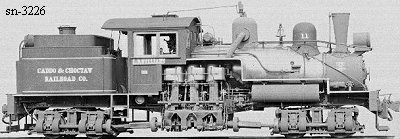

Shop Number 3226 - Built for: Caddo River Lbr. Co.
{2,643rd Lima Built Shay}
Built:
7-31-1923
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
5.81
Maximum
Safe Speed:
17.1
Fuel Type:
Oil
Fuel Capacity:
800 Gals.
Water Capacity:
1,560 Gallons
Empty Weight:
As built
81,900
Owners:
Caddo River Lbr. Co., Caddo & Choctaw RR #11 "L. D. WILLIAMS", Rosboro, AR
(11-28-1924) Waterman-Fouke Lbr. Co., Mississippi & Western RY #11, Fouke, MS
(1-1-1926) Hutchison-Moore Lbr. Co., Mississippi & Western RY #11, Fouke, MS
Disposition: Scrapped
Additional Notes:
