Lima Locomotive Works, Inc.

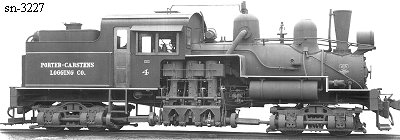

Photo Credit:
Marc Reusser collection (BP 8-1923)

Shop Number 3227	-	Built for: Porter-Carstens Log. Co.
{2,644th Lima Built Shay}

Built: 8-2-1923	Class: B 42-2	Trucks: 2	Cylinders: [#-Dia. x Stroke] 3 - 10 x 12
Gear Ratio: 2.05	Wheel Dia.: 29.5"	Gauge: std.	Boiler: [Style - Dia.] E.W.T. - 42.125"
Boiler Pressure: In Lbs. (PSI) 180	Tractive Effort: 16,886 Lbs.	Factor of Adhesion: 6.02	Maximum Safe Speed: 17.1
Fuel Type: Oil	Fuel Capacity: 800 Gals.	Water Capacity: 1,560 Gallons	Empty Weight: As built 85,400
Owners: Porter-Carstens Log. Co. #4, Estacada, OR (c1926) La Dee Log. Co. #4, Kerry, OR (7-19-1933) Western Steel & Equip. Co. (D), Portland, OR (10-23-1933) Giustina Brothers Lbr. Co. #2, Eugene, OR
Disposition: Scrapped
Additional Notes:
