Lima Locomotive Works, Inc.

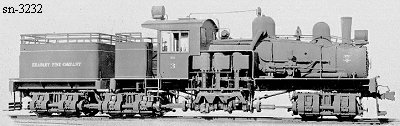

Photo Credit:
George R. Kadelak collection (BP 9-1923)
Shop Number 3232 - Built for: Headley Pine Co.
{2,649th Lima Built Shay}
Built:
9-8-1923
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 50.125"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
30,375 Lbs.
Factor of
Adhesion:

5.07
Maximum
Safe Speed:

19.0
Fuel Type:
Wood
Fuel Capacity:
2.5 Cords
Water Capacity:
3,000 Gallons
Empty Weight:
As built
127,800
Owners:
Headley Pine Co. #3, Uniform, AL
(4-7-1925) Turner Pine Lbr. Co. #3, Uniform, AL
(5-2-1931) For sale
(3-1937) stored at Mobile, AL
Disposition: Scrapped
Additional Notes:
