Lima Locomotive Works, Inc.

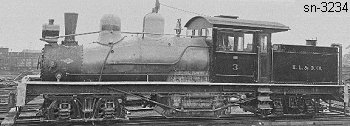

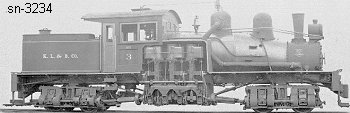

Photo Credit:
Both: George R. Kadelak collection (BP 9-1923)
Shop Number 3234 - Built for: Millars Tbr. & Trading Co.
{2,651st Lima Built Shay}
Built:
9-26-1923
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
42"
Boiler:
[Style - Dia.]

E.W.T. - 44.375"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
22,563 Lbs.
Factor of
Adhesion:

4.88
Maximum
Safe Speed:

17.2
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,750 Gallons
Empty Weight:
As built
88,800
Owners: (Includes new data after 2018 Shay book completed)
Millars Tbr. & Trading Co. #3, Manila, Luzon, U. S. Territory of the Philippines; For:
Kolambugan Lbr. & Development Co #3, Kolambugan, Mindanao, U. S. Territory of the Philippines
(11-7-1928) Findley-Millar Tbr. Co. #3, Kolambugan, Mindanao, U. S. Territory of the Philippines
Disposition: Scrapped
Additional Notes: Shay shipped to Kolambugan Lbr. & Development Co. c/o Davies Turner Co., Manila, P. I., via New York City, NY
