Lima Locomotive Works, Inc.

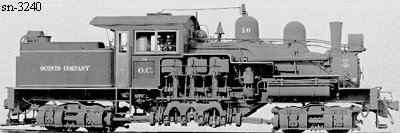

Photo Credit:
George R. Kadelak collection (BP 10-1923)
Shop Number 3240 - Built for: Oconto Co.
{2,657th Lima Built Shay}
Built:
10-1-1923
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.375"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
22,563 Lbs.
 Factor of
Adhesion:
5.30
 Maximum
Safe Speed:
17.2
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,750 Gallons
Empty Weight:
As built
97,400
Owners:
Oconto Co. (Oneva Lbr. Co.) #10, Carter, WI
(11-19-1924) Oconto Co. (Oneva Lbr. Co.) #10, Flanders Spur, WI
Disposition: (1943) Scrapped at Carter, WI
Additional Notes: Shay was shipped to Oneva Lbr. Co.
