Lima Locomotive Works, Inc.

Photo Credit:
George R. Kadelak collection (BP 12-1923)

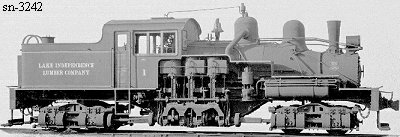

Shop Number 3242 - Built for: Lima Locomotive Works
{2,659th Lima Built Shay}
Built:
12-8-1923
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.375"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
22,563 Lbs.
 Factor of
Adhesion:
5.32
Maximum
Safe Speed:
17.2
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,750 Gallons
Empty Weight:
As built
98,600
Owners:
Lima Locomotive Works, Inc., Lima, OH; built for stock
(4-10-1925) Lake Independence Lbr. Co. #1, Big Bay, MI
(1927) Brunswick Lbr. Co. #1, Big Bay, MI
Disposition: Scrapped
Additional Notes:
