Lima Machine Works

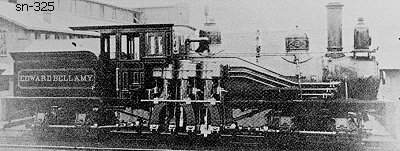

Photo Credit:
George R. Kadelak collection (BP 1-1891)
Shop Number 325 - Built for: McClelland & Kane
{289th Lima Built Shay}
Built:
1-27-1891
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.056
 Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
22,417 Lbs.
 Factor of
Adhesion:
4.81
 Maximum
Safe Speed:
18.6
Fuel Type:
Coal
Fuel Capacity:
3.8 Tons
Water Capacity:
1,875 Gallons
Empty Weight:
As built
85,500
Owners:
McClelland & Kane, Mt. Jewett, Kinzua & Riterville RR #2 "EDWARD BELLAMY", Kushequa, PA
(1895) Empire Lbr. Co., Empire, MI
Birmingham Rail & Loco. Co.(D), Birmingham, AL
(8-1906) Antrim Iron Co., Antrim, MI
General Equip. Co.(D), McComb, MS
(10-13-1920) Hercules Powder Co., #11, Gulfport, MS
Disposition: (10-13-1926) Scrapped
Additional Notes:
