Lima Locomotive Works, Inc.

Photo Credit:
George R. Kadelak collection (BP 2-1924)

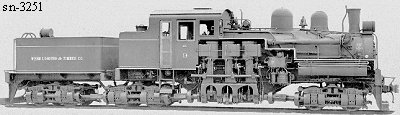

Shop Number 3251 - Built for: Webb Log. & Tbr. Co.
{2,667th Lima Built Shay}
Built:
2-15-1924
Class:
C
90-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 14.5 x 15
Gear Ratio:
2.05
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 58"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
40,407 Lbs.
 Factor of
Adhesion:
5.32
 Maximum
Safe Speed:
20.9
Fuel Type:
Oil
Fuel Capacity:
1,500 Gals.
Water Capacity:
3,500 Gallons
Empty Weight:
As built
181,000
Owners:
Webb Log. & Tbr. Co. #9, Duckabush, WA
(7-1929) Phoenix Log. Co. #9, Hoodsport, WA
(3-5-1940) Ozette Tbr. Co. #9, Lake Ozette, WA
Disposition: Scrapped
Additional Notes:
