Lima Locomotive Works, Inc.

Photo Credit:
George R. Kadelak collection (BP 3-1923)

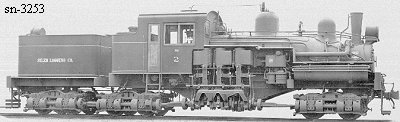

Shop Number 3253 - Built for: Siler Log. Co.
{2,669th Lima Built Shay}
Built:
3-15-1924
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50.125"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
5.72
 Maximum
Safe Speed:
19.0
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
146,300
Owners:
Siler Logging Co. #2 (2nd), Cathcart, WA
Used by Hyman-Michaels to scrap the line
(3-1-1927) Weyerhaeuser Tbr. Co.#2 (1st), Vail, WA
(3-1-1937) North Bend Tbr. Co. #6, North Bend, WA
(8-6-1942) M. Bloch & Co. (D), Seattle, WA
(8-6-1942) For sale
Disposition: Scrapped
Additional Notes:
