Lima Locomotive Works, Inc.

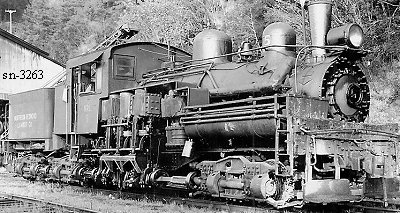

Photo Credit:
Richard S Johnson collection (c1945)
Shop Number 3263 - Built for: Mount Shasta Power Co.
{2,679th Lima Built Shay}
Built:
8-8-1924
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50.125"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
5.71
Maximum
Safe Speed:
19.0
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
146,000
Owners:
Mount Shasta Power Corp. #5, Bartle, CA
Pacific Gas & Electric Co. #5, Bartle, CA
Yosemite Lbr. Co. #5, Merced Falls, CA
(11-27-1929) Yosemite Sugar Pine Lbr. Co. #5, Merced Falls, CA
(5-8-1943) M. Davidson (D), Stockton, CA
(5-8-1943) For sale as-is-where-is (Merced Falls)
(1-30-1945) Northern Redwood Lbr. Co., Arcata & Mad River RR #5, Korbel, CA
(1957) Simpson Redwood Co. #5, Korbel, CA
(1957) Learner Steel Co. (D), Oakland, CA
Disposition: (1957) Scrapped
Additional Notes:
