Lima Locomotive Works, Inc.

Photo Credit:
George R. Kadelak collection (BP 6-1924)

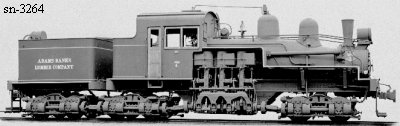

Shop Number 3264 - Built for: Adams-Banks Lbr. Co.
{2,680th Lima Built Shay}
Built:
6-10-1924
Class:
C
60-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.529
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.375"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
25,820 Lbs.
 Factor of
Adhesion:
5.43
 Maximum
Safe Speed:
15.1
Fuel Type:
Coal
Fuel Capacity:
3.5 Tons
Water Capacity:
2,500 Gallons
Empty Weight:
As built
115,400
Owners: (Includes new data after 2018 Shay book completed)
Adams-Banks Lbr. Co. #7, Morton, MS
(5-8-1931) Adams-Edgar Lbr. Co. #7, Morton, MS
(8-31-1937) '[42"] Insular Lbr. Co. #4, Fabrica, Negros Occidental, U. S. Territory of the Philippines
(7-4-1946) Insular Lbr. Co. #4, Fabrica, Negros Occidental, Republic of the Philippines
Last known in Fabrica in the early1970's
Disposition: The #10 Shay on display at Lopez Sugar Corp. refinery in Sagay is not sn-3264
Additional Notes:
