Lima Locomotive Works, Inc.

Photo Credit:
George R. Kadelak collection (BP 7-1924)

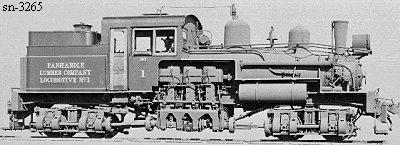

Shop Number 3265 - Built for: Panhandle Lbr. Co.
{2,681st Lima Built Shay}
Built:
7-29-1924
Class:
B
36-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
29"
Gauge:
42"
Boiler:
[Style - Dia.]
E.W.T. - 39.375"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
14,316 Lbs.
 Factor of
Adhesion:
6.31
 Maximum
Safe Speed:
16.8
Fuel Type:
Oil
Fuel Capacity:
800 Gals.
Water Capacity:
1,200 Gallons
Empty Weight:
As built
76,000
Owners:
Panhandle Lbr. Co. #1, Ruby, WA
(4-19-1940) Washington Machinery & Supply Co. (D), Seattle, WA
Disposition: Scrapped
Additional Notes:
