Lima Locomotive Works, Inc.

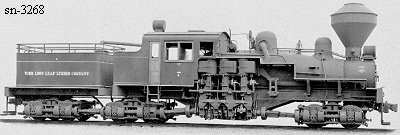

Photo Credit:
George R. Kadelak collection (BP 9-1924)
Shop Number 3268 - Built for: Wier Long Leaf Lbr. Co.
{2,684th Lima Built Shay}
Built:
9-13-1924
Class:
C
80-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 13.5 x 15
Gear Ratio:
2.05
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
35,026 Lbs.
 Factor of
Adhesion:
3.61
Maximum
Safe Speed:
20.9
Fuel Type:
Wood
Fuel Capacity:
2.5 Cords
Water Capacity:
3,500 Gallons
Empty Weight:
As built
156,000
Owners:
Wier Long Leaf Lbr. Co., #7, Wiergate, TX
Disposition: Scrapped
Additional Notes:
