Lima Locomotive Works, Inc.
Photo Credit:

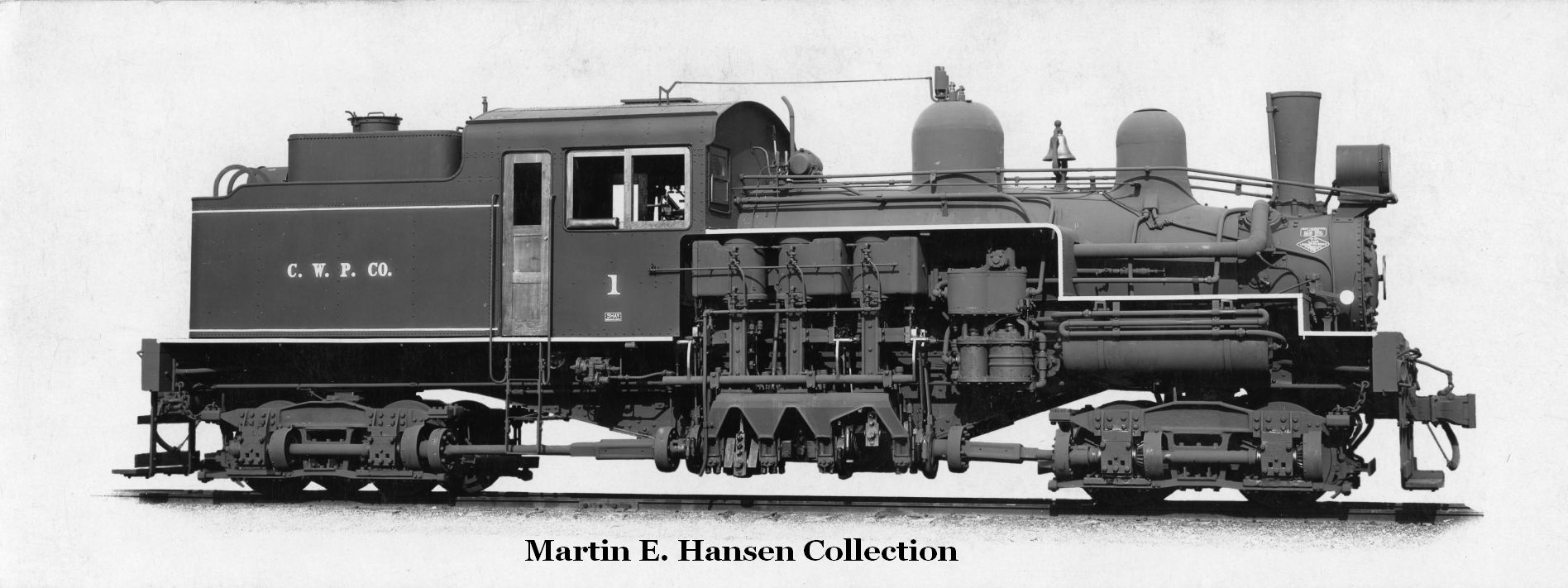

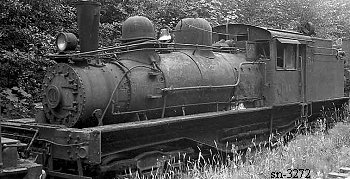

Top/Left: Martin E. Hansen collection

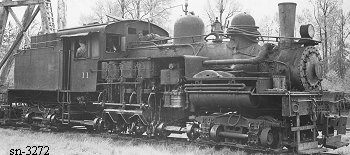

Right Steve Hauff collection (7-1-1949)
Shop Number 3272 - Built for: Crown Willamette Paper Co.
{2,688th Lima Built Shay}
Built:
4-13-1925
Class:
B
60-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.22
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46.375"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
23,876 Lbs.
 Factor of
Adhesion:
5.91
Maximum
Safe Speed:
19.3
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
2,500 Gallons
Empty Weight:
As built
117,000
Owners:
Pacific Coast Supply Co. (D), CA
Crown Willamette Paper Co. #1, Floriston CA
Crown Willamette Paper Co. #11, Floriston, CA
(10-1929) Stored at S.P.'s Truckee engine house, Truckee (Hobart Mills), CA
(12-27-1933) Crown Willamette Paper Co. #11, Cathlamet, WA
Disposition: (1959) Scrapped
Additional Notes: Equipped with Baker Marine Piston Valves from Pillord Corporation
