Lima Locomotive Works, Inc.

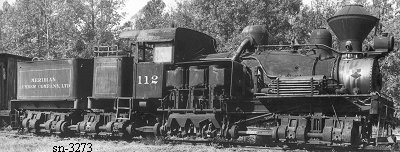

Photo Credit:
Marc Reusser collection (11-1950)
Shop Number 3273 - Built for: Weber-King Mfg. Co.
{2,689th Lima Built Shay}
Built:
11-10-1924
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.22
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 50.125"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
30,375 Lbs.
Factor of
Adhesion:

5.08
Maximum
Safe Speed:

19.0
Fuel Type:
Wood
Fuel Capacity:
2.5 Cords
Water Capacity:
3,000 Gallons
Empty Weight:
As built
128,000
Owners:
Weber-King Mfg. Co. #112 (Weber-King Lumber Co.) Leesville, LA
(5-2-1935) Meridian Lbr. Co., Ltd. #112, Longleaf, LA
Disposition: (1956) Scrapped
Additional Notes:
