Lima Locomotive Works, Inc.

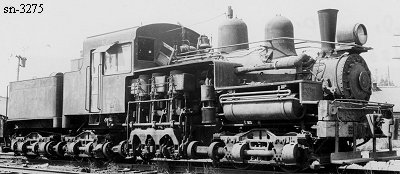

Photo Credit:
by Doug Richter (8-26-1949)
Shop Number 3275 - Built for: Winton Lbr. Co.
{2,691st Lima Built Shay}
Built:
3-24-1925
Class:
C
60-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.529
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.375"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
26,820 Lbs.
 Factor of
Adhesion:
5.28
Maximum
Safe Speed:
15.1
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
2,000 Gallons
Empty Weight:
As built
115,400
Owners:
Winton Lbr. Co. #6, Prichard, ID
(7-2-1937) Connacher Log. Co. #852, Vernonia, OR
(2-7-1940) Consolidated Tbr. Co. #852, Glenwood, OR
Umpqua River Navigation Co. #8, Reedsport, OR
Disposition: Scrapped
Additional Notes: 3275 was shipped to Prichard Shoshone Company, Idaho
