Lima Locomotive Works, Inc.

Photo Credit:
Marc Reusser collection (3-1952)

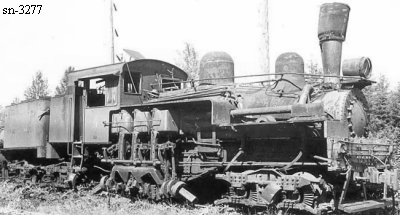

Shop Number 3277 - Built for: Wallace Falls Tbr. Co.
{2,693rd Lima Built Shay}
Built:
3-13-1925
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50.125"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
5.82
 Maximum
Safe Speed:
19.0
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
149,500
Owners:
Wallace Falls Tbr. Co. #3, Gold Bar, WA
(c1938) C. E. Edlund Log. Co. #3, Gold Bar, WA
Disposition: (after 3-1952) Scrapped
Additional Notes:
