Lima Locomotive Works, Inc.
Photo Credit:

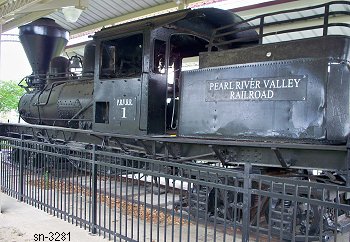

Left: by Jim Buckner (5-8-2013)

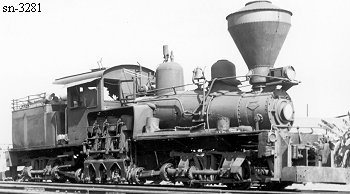

Right: Steve Hauff collection (8-1958)
Shop Number 3281 - Built for: Batson-McGehee Lbr. Co.
{2,697th Lima Built Shay}
Built:
3-25-1925
Class:
B
36-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
29"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 39.375"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
14,315 Lbs.
 Factor of
Adhesion:
5.77
 Maximum
Safe Speed:
16.8
Fuel Type:
Wood
Fuel Capacity:
1.25 Cords
Water Capacity:
1,200 Gallons
Empty Weight:
As built
69,400
Owners:
Batson-McGehee Lbr. Co. #1 (2nd), Millard, MS
(8-1943) Goodyear Yellow Pine Co. #1, Picayune, MS
(1-30-1950) Stored out of service
(2-1950) Crosby Forest Products #1, Picayune, MS
(early 1960's) Donated to: City of Picayune, MS; by Lucius O. Crosby Jr.
Disposition: on display @ Chamber of Commerce Park, Picayune, MS
Additional Notes:
SLc Survivor List
