Lima Locomotive Works, Inc.

Photo Credit:

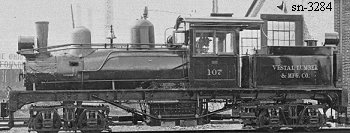

Left: George R. Kadelak collection (BP 3-1925)

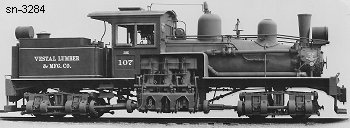

Right: Danial Davis Collection (BP 3-1925)
Shop Number 3284 - Built for: Vestal Lbr. & Mfg. Co.
{2,699th Lima Built Shay}
Built:
3-25-1925
Class:
B
36-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
29"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 39.375"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
14,316 Lbs.
 Factor of
Adhesion:
5.85
 Maximum
Safe Speed:
16.8
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,200 Gallons
Empty Weight:
As built
69,000
Owners:
Vestal Lbr. & Mfg. Co. #107, Duff, TN
(4-1-1942) Francis Rex Coal Co. Inc. #107, La Follette, TN
(9-9-1946) Central Rex Coal Co. #107, La Follette, TN
(4-7-1947) NuRex Coal Co., #107, La Follette, TN
Rex-Jellico Coal Co. #107, La Follette, TN
Disposition: (1956) Scrapped
Additional Notes:
