Lima Locomotive Works, Inc.

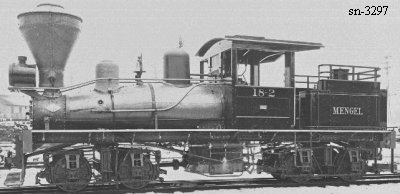

Photo Credit:
George R. Kadelak collection (BP 2-1926)
Shop Number 3297 - Built for: The Mengel Co.
{2,712th Lima Built Shay}
Built:
2-4-1926
Class:
A
18-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 7 x 12
Gear Ratio:
3.071
Wheel Dia.:
27.5"
Gauge:
36"
Boiler:
[Style - Dia.]

E.W.T. - 27.5"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
7,880 Lbs.
Factor of
Adhesion:

6.06
Maximum
Safe Speed:

10.7
Fuel Type:
Wood
Fuel Capacity:
0.75 Cord
Water Capacity:
730 Gallons
Empty Weight:
As built
40,700
Owners:
The Mengel Co. #18-2, Vaca Falls, Belize, British Honduras
Disposition: Scrapped
Additional Notes:
