Lima Locomotive Works, Inc.

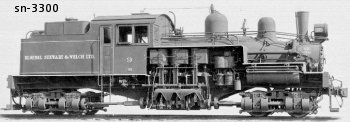

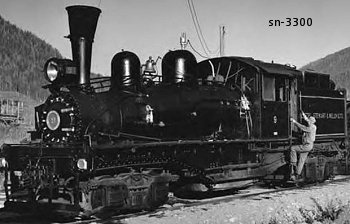

Photo Credit:
Left: University of Washington Digital collection
Right: George R. Kadelak collection (BP 4-1926)
Shop Number 3300 - Built for: Bloedel, Stewart & Welch Ltd.
{2,715th Lima Built Shay}
Built:
4-15-1926
Class:
B
60-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.22
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46.375"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
23,976 Lbs.
 Factor of
Adhesion:
6.22
 Maximum
Safe Speed:
19.3
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
2,500 Gallons
Empty Weight:
As built
124,500
Owners:
Bloedel, Stewart & Welch Ltd. #9, Myrtle Point, BC, CAN
Converted to Coal
(c4-12-1927) Bloedel Stewart & Welch, Ltd. #9, Menzies Bay, BC, CAN
(10-1-1951) MacMillan & Bloedel Ltd. #1009, Franklin River, BC, CAN
Disposition: Scrapped
Additional Notes:
