Lima Locomotive Works, Inc.

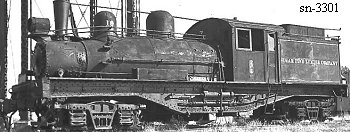

Photo Credit:
Left: by unknown - Right: Marc Reusser collection (BP 3-1926)
Shop Number 3301 - Built for: Sugar Pine Lbr. Co.
{2,716th Lima Built Shay}
Built:
3-30-1926
Class:
B
60-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.22
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46.375"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
23,976 Lbs.
 Factor of
Adhesion:
6.43
 Maximum
Safe Speed:
19.3
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
127,400
Owners:
Sugar Pine Lbr. Co. #10, Pinedale, CA
(by 5-1-1936) The Pensacola Co. (D), Fresno, CA
Disposition: (c1947) Scrapped at Fresno, CA
Additional Notes:
