Lima Locomotive Works, Inc.

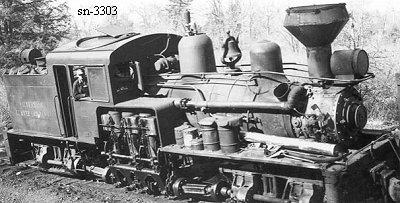

Photo Credit:
Marc Reusser collection (9-1952)
Shop Number 3303 - Built for: Wilderness Lbr. Co.
{2,718th Lima Built Shay}
Built:
6-19-1926
Class:
B
36-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
29"
Gauge:
36"
 Boiler:
[Style - Dia.]
E.W.T. - 39.375"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
14,316 Lbs.
 Factor of
Adhesion:
6.11
Maximum
Safe Speed:
16.8
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,500 Gallons
Empty Weight:
As built
71,200
Owners:
Wilderness Lbr. Co. #5, Nallen, WV
(1938) Babcock Coal & Coke Co., Mann's Creek RY #5 (2nd), Clifftop, WV
(1952) Royalty Smokeless Coal Co., Mann's Creek RY #5, Clifftop, WV
Disposition: (1957) Scrapped
Additional Notes: The" Wilderness Lbr. Co. #5" lettering was left on this engine until it was scrapped
